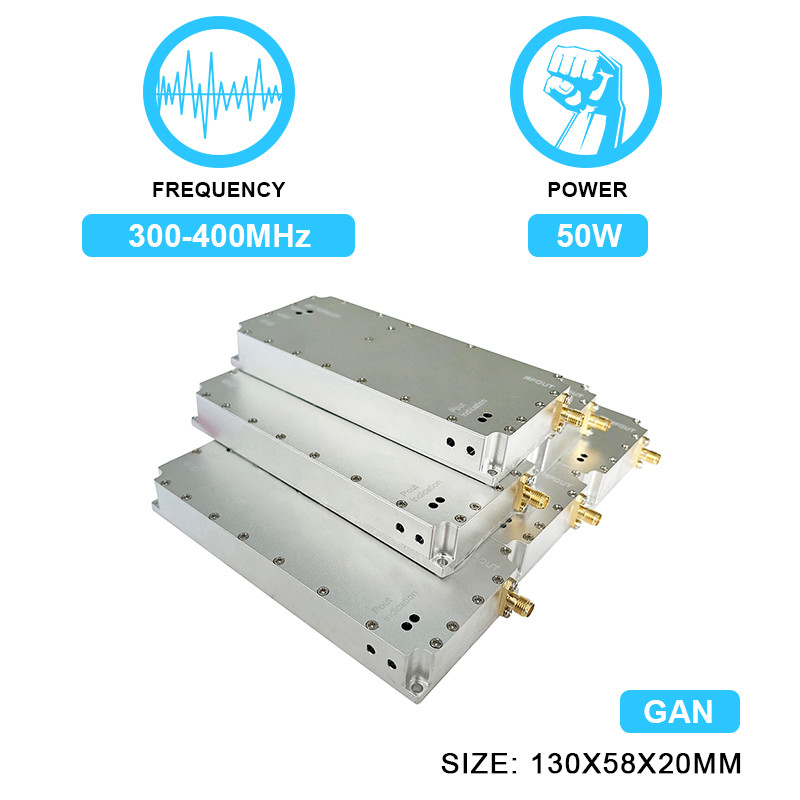

50W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector

Product Categories

JinYaTong Technology(china) Co., Ltd

Contact Now

50W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector

Name: 50W 300400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector
Brand: OEM/ODM
Price: 1 USD

China 50W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector factory

Brand Name : OEM/ODM

Model Number : JYT-M300-50

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Description

^{Product Parameters}

50W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage 7,Isolation Protector

1.RF Data

Item		Spec.	Remarks
Frequency Range(MHz)		300-400	Bandwidth Range±10MHz
Working Voltage		28V	24-30V
Analog sweeping speed		250KHz
Output Power (Max)		≥47dBm	50W
Gain (Max)		47±1 dB
Ripple in Band		≤ 3 dB	Peak
Bandwidth adjustment		Yes	By screw
Center adjustment		Yes	By screw
Enable control		Yes	24-28V
Output VSWR		≤3
Working current@+28V dc		≤5.5A
High LowTemperature test	Working Temperature	-20~＋65℃	Working properly
	Gain Stability	±1 dB	at -20℃~+55℃
	Power stability	±1 dB	at -20℃~+55℃

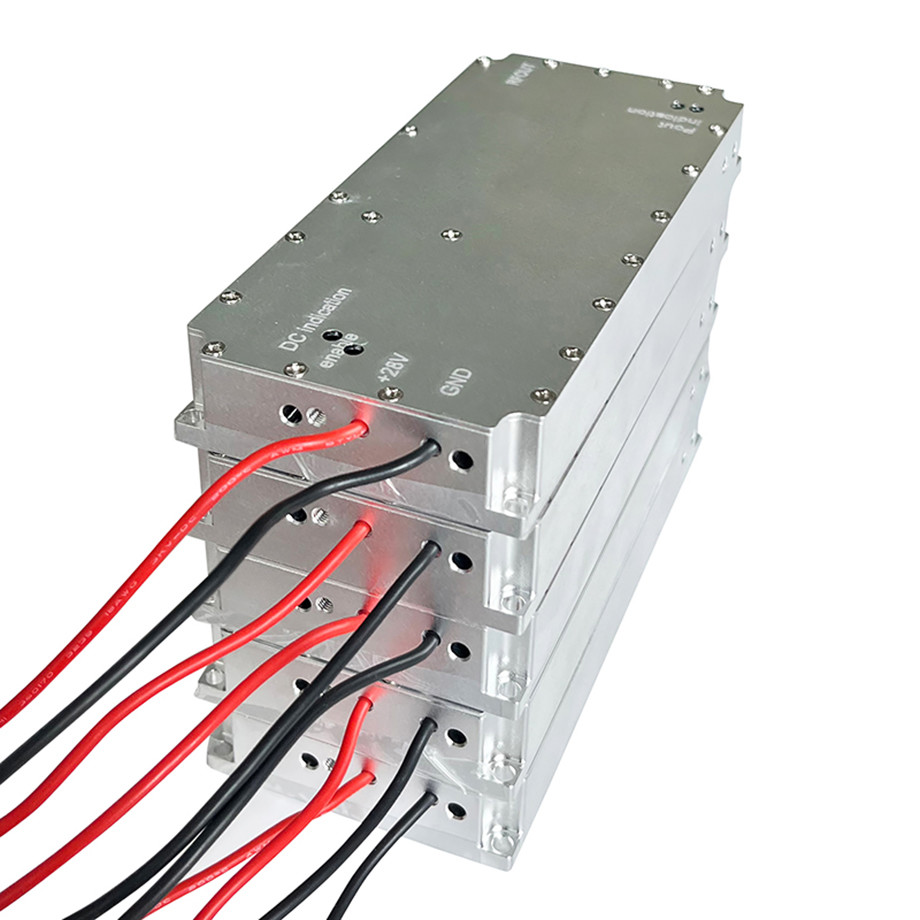

Power supply Port		Positive and negative lines	24-28V; GND
Center adjustment		SMA-Female
LED indicator light		Power ON/OFF
Dimension		1385820 mm
Screw Size		4-Ø3.20 mm
Weight		180g

2.Size

50W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector

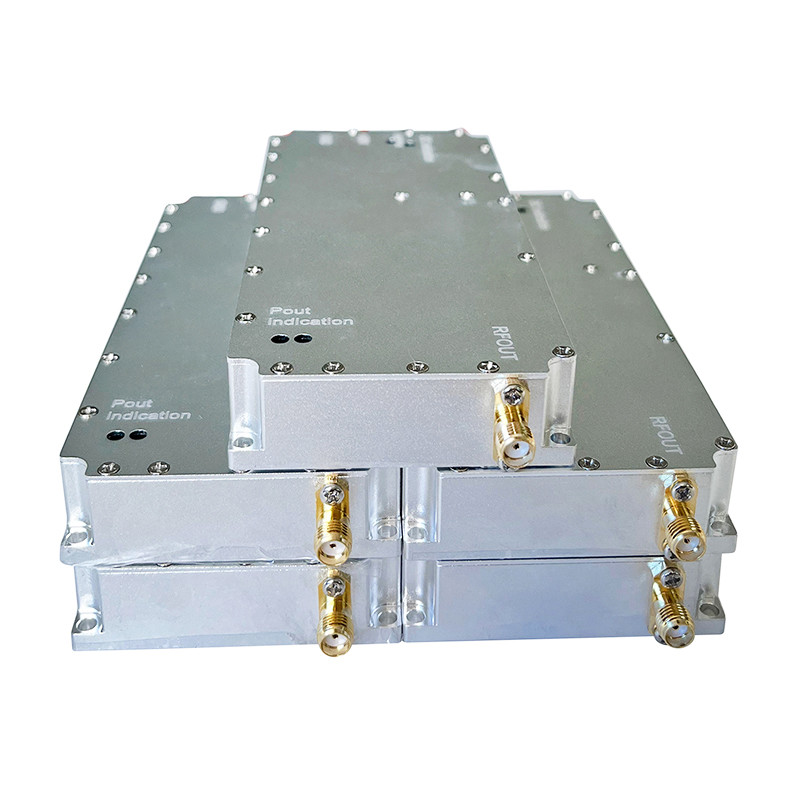

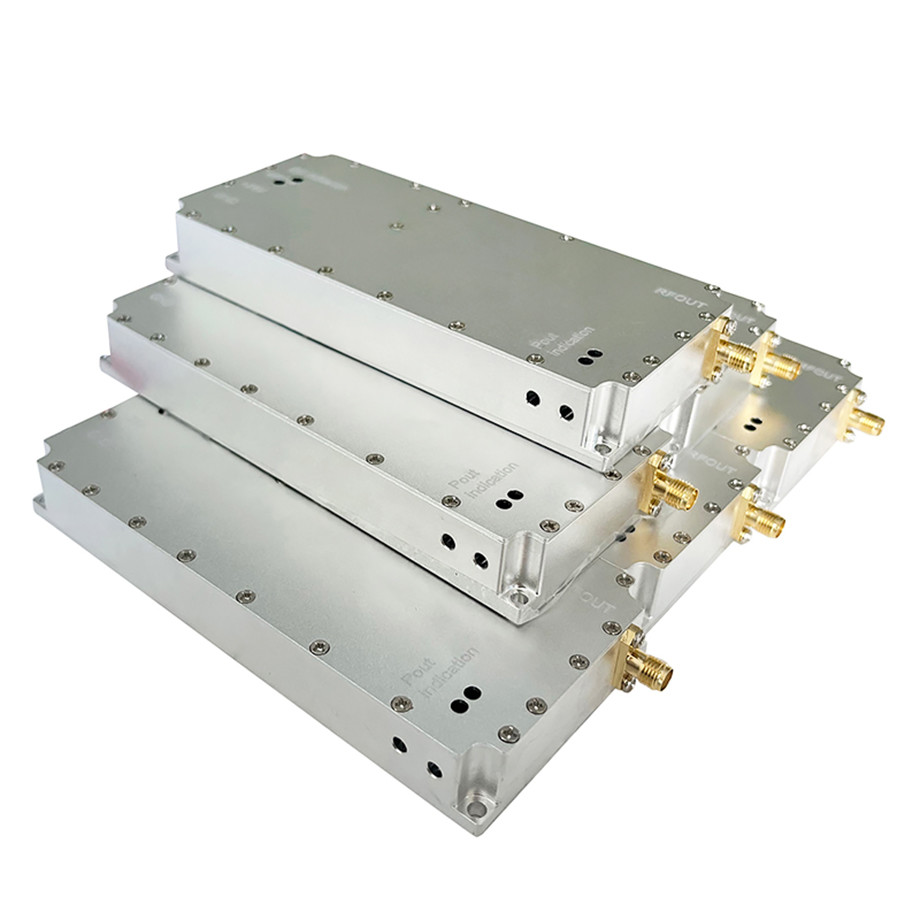

50W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GaN and Isolation Protector Images
